2018 GOLDEN TEC MACHINERY TW-1400 Twin Knives Sheet Cutter

Model: GME-TC

2018 GOLDEN TEC TW-1400 Synchro Twin Knives Sheeter is engineered for card board and 120–800 GSM high-grammage paper.
It features twin rotary knives, AC servo drive, and fully automatic cut-length control, delivering high precision, high speed, and excellent stability.

With a design speed of 300 m/min (based on 700mm cut length), the machine efficiently handles cutting, slitting, conveying, and stacking, making it ideal for high-volume printing, packaging, and converting production.

Videos:

Features:

    • Wide paper compatibility: Suitable for card board and 120–800 GSM paper.

    • High cutting accuracy:
      Length ±0.35mm (L<1000mm), Width ±0.5mm, Squareness ±0.5mm.

    • High-speed production: Up to 300 m/min design speed, 280 m/min operation speed.

    • Twin rotary knife system: Rotary top & bottom knives produce clean, stable cuts.

    • Advanced automation: LCD display, AC servo control, auto tension control, EPC guiding system.

    • Shaftless mill roll stand: Handles two rolls up to Φ1850 mm, equipped with pneumatic brake.

    • Complete delivery system: Includes jogger, vibration system, and pallet lift.

    • Stack height up to 1300 mm (including pallet).

      Specification:

        • Year: 2018
        • Paper Grade: Card board
        • Paper Weight: 120–800 GSM
        • Cutter Knife Length: 1450 mm
        • Finished Width: 1400 mm
        • Knife Load: Max. 800 GSM
        • Number of Slitters: 3 sets
        • Finished Sheet Length: 550–1400 mm
        • Design Speed: Max. 300 m/min (L = 700 mm)
        • Operation Speed: Max. 280 m/min (depends on paper grade & cut length)
        • Stack Height: Max. 1300 mm (with pallet)
        • Cutting Accuracy:
          • Length: ±0.35mm (L < 1000mm) / ±0.03% (L = 1000mm)
          • Width: ±0.5mm
          • Squareness: ±0.5mm
        • Installation & Power Requirements:
          • Drive Side: Right side (viewed from layboy)
          • Power Consumption: Max. 75 HP
          • Pneumatic Requirement: Max. 6 kg/cm²
          • Site Condition:  1st or 2nd floor
          • Power Supply:
            • Drive：AC 380V / 50–60Hz / 3P
            • Control：AC 220V / 50–60Hz / 3P

      Special Details:

      • 1. Off-Machine Shaftless Mill Roll Stand (Unwinder) – Model MRS0218

        • Shaftless hydraulic roll stand ×1 (holds 2 rolls)

        • Max. reel diameter: Φ1850mm

        • Max. reel width: 1400 mm

        • Pneumatic brake system

        • Manual hydraulic arm adjustment

        • Core size: 3″–12″ taper chuck

        2. Auto Tension Controller ×1
        3. Edge Position Control System (EPC) ×1
        4. High Precision & High Speed Sheeter System

        • Twin rotary cutter (1450mm SKH top & bottom knife)

        • Decurling devices (large & small)

        • Slitting station with 3 slitters

        • Trim edge transporter (5–25mm)

        • Infeed draw roll

        • Timing-belt driving system

        • Auto cut-length control unit

        • Main drive motor

        5. Conveyor System

        • Layboy lifter

        • Jogger & vibrating device

        • Tab inserter device

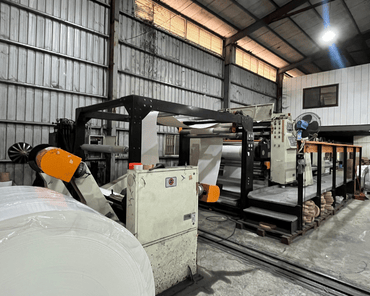

      2018 GOLDEN TEC TW-1400 Synchro Twin Knives Sheeter
