PAKTEK Folder Gluer GM-1050

Model: GM-1050

The PAKTEK Folder Gluer GM-1050, manufactured in 2006, machine number 229, is a high-performance gluing solution ideal for a wide range of box types. Compatible with cardboard, E-flute corrugated, and decorative boards, it supports straight-line, double-wall, and crash bottom (4/6 corner) boxes. Fully equipped with accessories and numerous spare parts, it’s a reliable choice for packaging operations seeking efficiency and versatility.

Videos:

Features:

    • Versatile Folding Types: Supports straight-line, double-wall, and bottom-folding (4/6 corner) box formats.
    • High-Speed Operation: Maximum running speed up to 200 meters per minute, enhancing productivity.
    • Material Flexibility: Handles cardboard, E-flute corrugated board, and decorative paperboard.
    • Dual Gluing System: Equipped with 4 hot-melt HHS glue heads and 4 cold glue applicators for flexible applications.
    • Efficient Pre-Folding: No.1 crease line folded to 180°, No.3 crease line to 135°, ensuring precise box shaping.

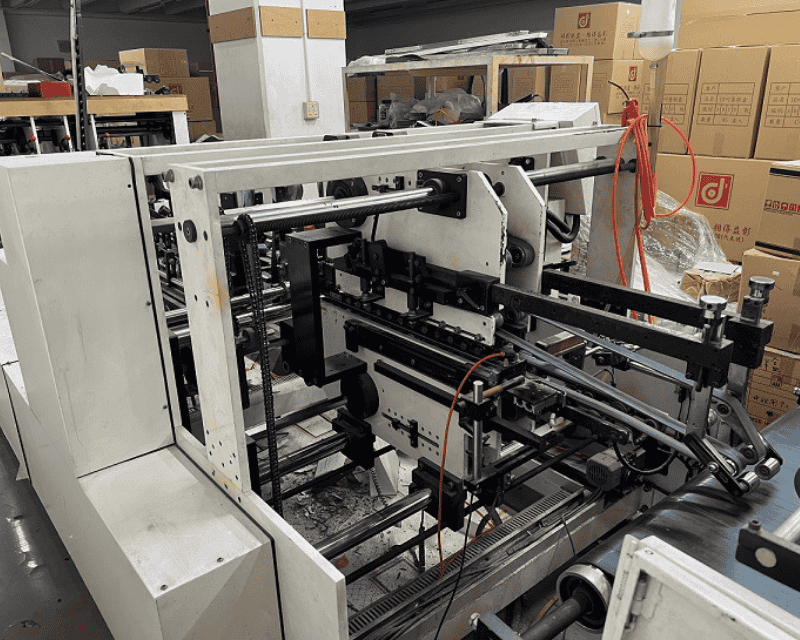

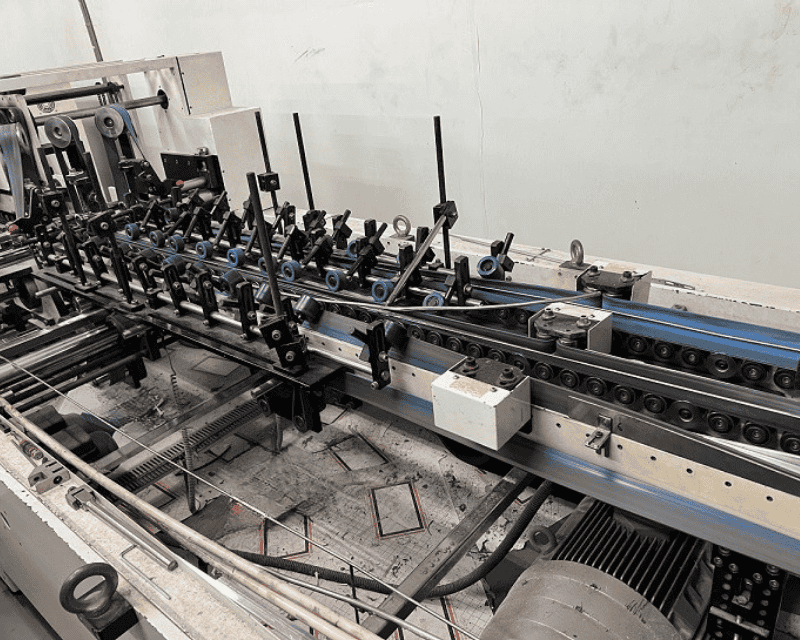

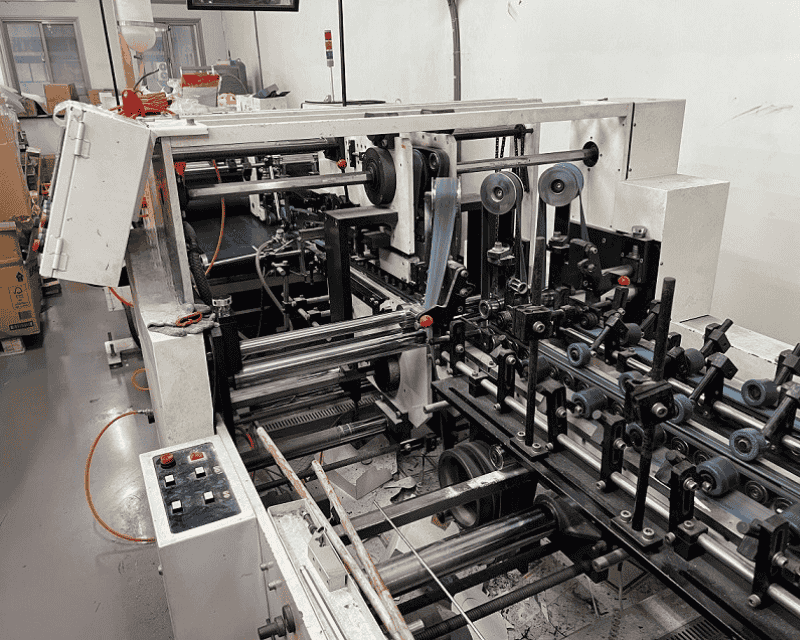

    • Complete Working Sections: Includes feeding, pre-folding, gluing, trombone, pressing conveyor, and delivery units for streamlined production.

Detailed Configuration:

    • Feeding System: Automatic and continuous feeding ensures smooth operation and reduces labor.
    • Pre-Folding Section: Enhances folding accuracy and shape retention of the final product.

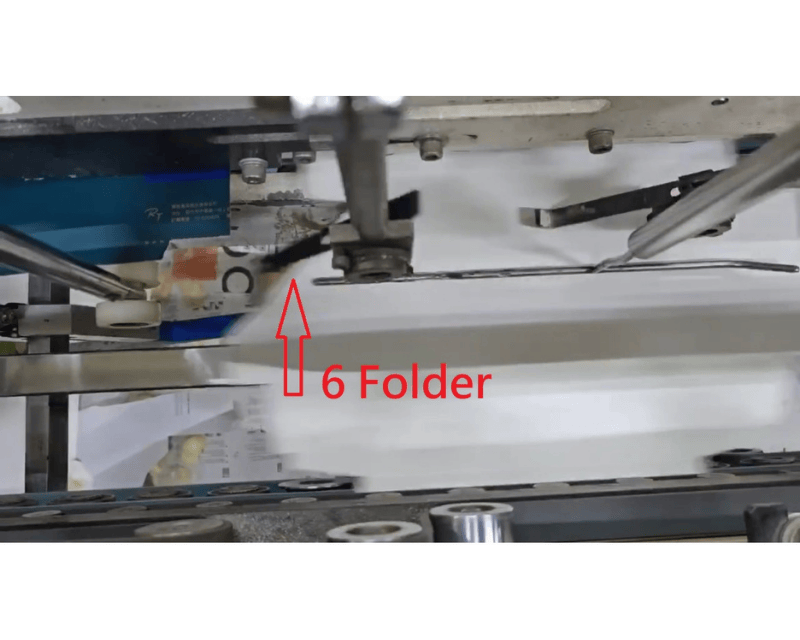

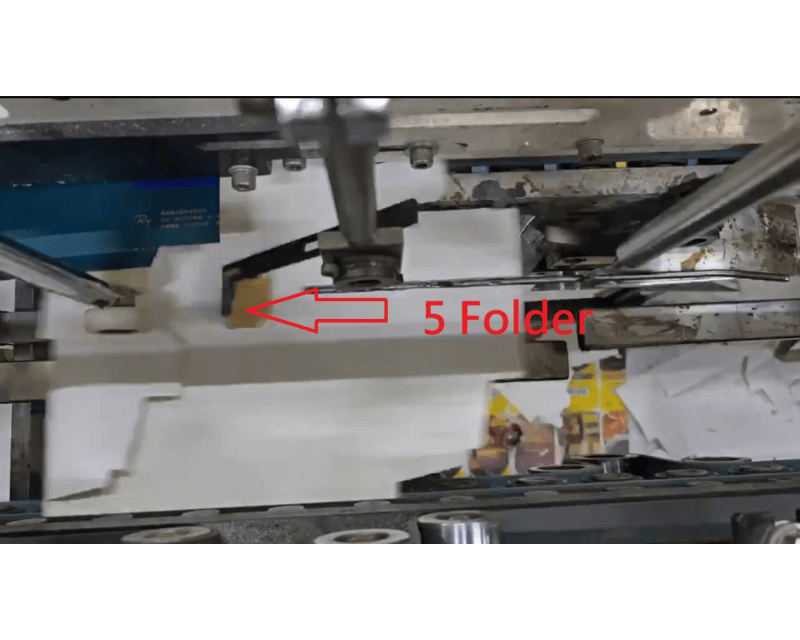

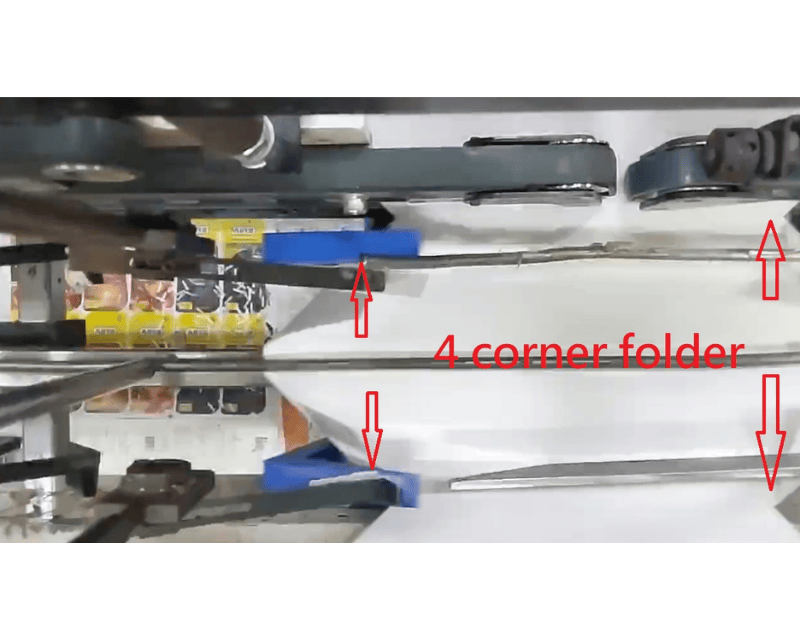

    • Crash Bottom Unit (4/6 Corner): Automatically forms the bottom flaps for crash-lock bottom boxes.
    • Trombone Section: Adjustable for different box sizes and lengths.
    • Pressing Conveyor: Ensures firm adhesion and stable final product quality.
    • Accessories & Spares: Machine comes with a full set of accessories and many spare parts to minimize downtime.

Specifications:

    • Year of Manufacture :2006
    • Machine No. :229
    • Max. Blank Width:1050 mm
    • Max. Speed:200 m/min
    • Material Types:Cardboard, E-Flute Corrugated, Decorative Board
    • Box Styles:Straight-Line, Double Wall, Crash Bottom (4/6 corner)
    • Creasing Angles:No.1 Line: 180°, No.3 Line: 135°
    • Glue System:4 Hot-Melt HHS, 4 Cold Glue
    • Power Requirement:22Kw, 380V, 50/60Hz
    • Machine Weight:Approx. 9,300 Kgs
    • Floor Space:13,900 × 1,700 × 1,500 mm (L × W × H)
    • Accessories:Complete with all accessories & many spare parts

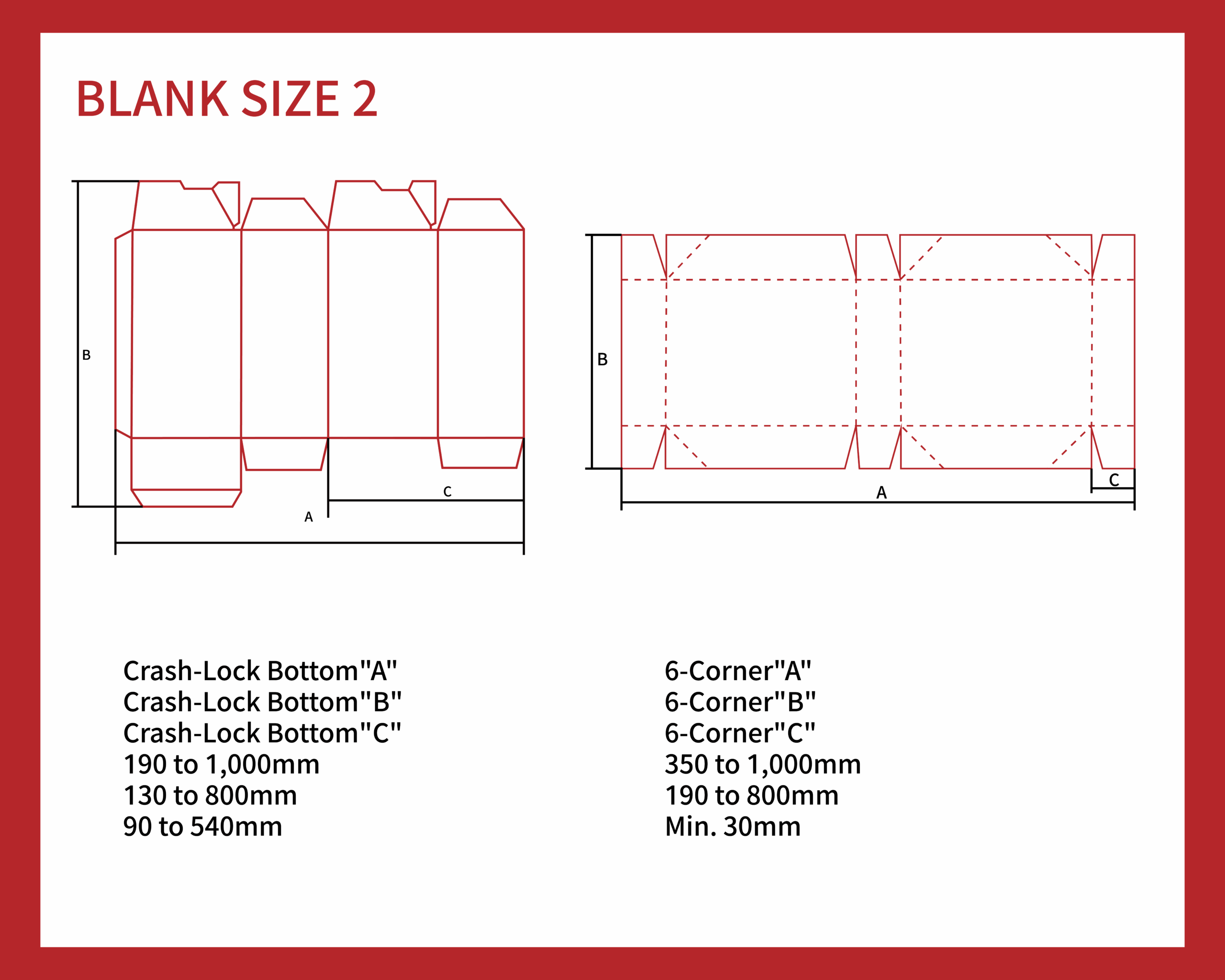

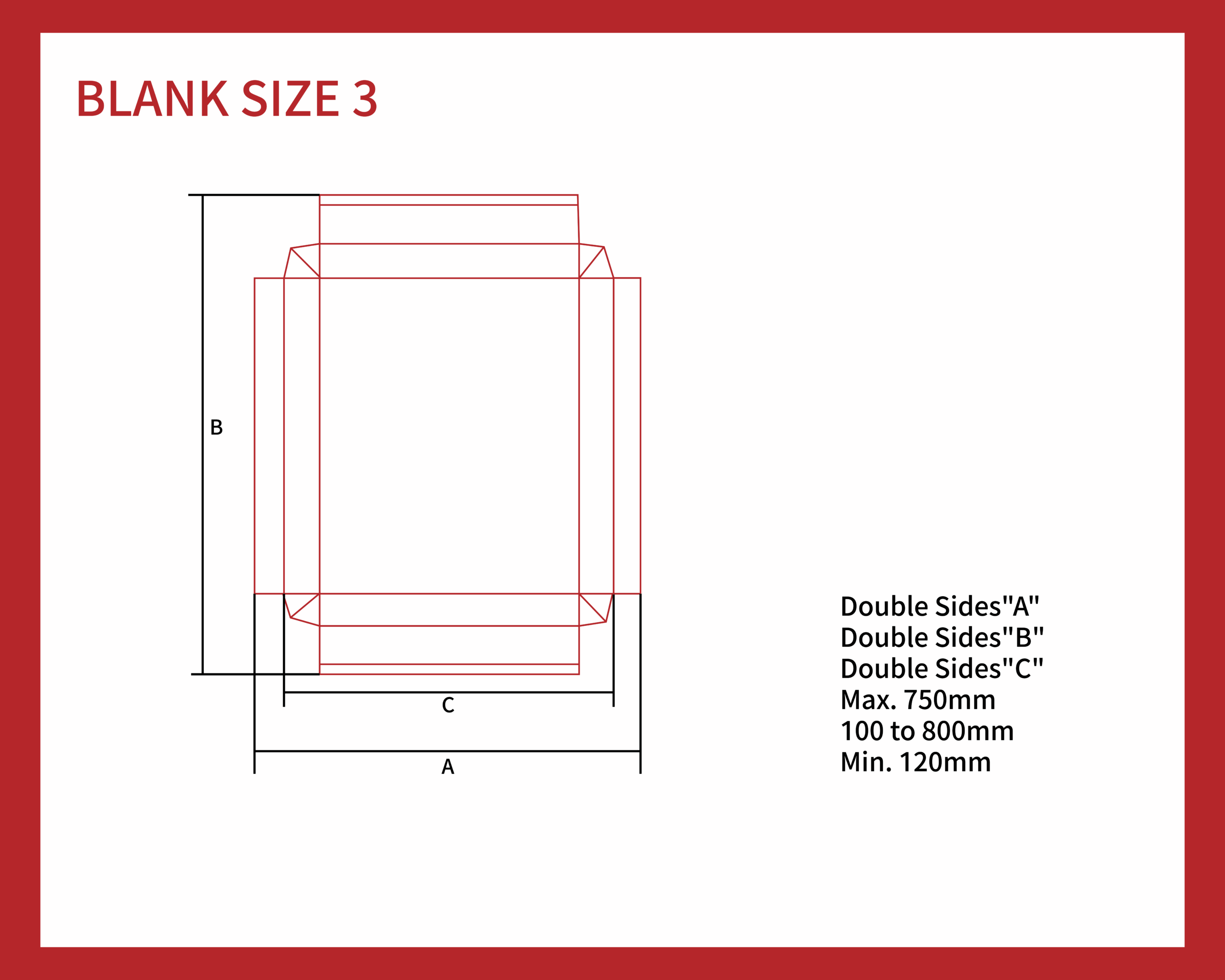

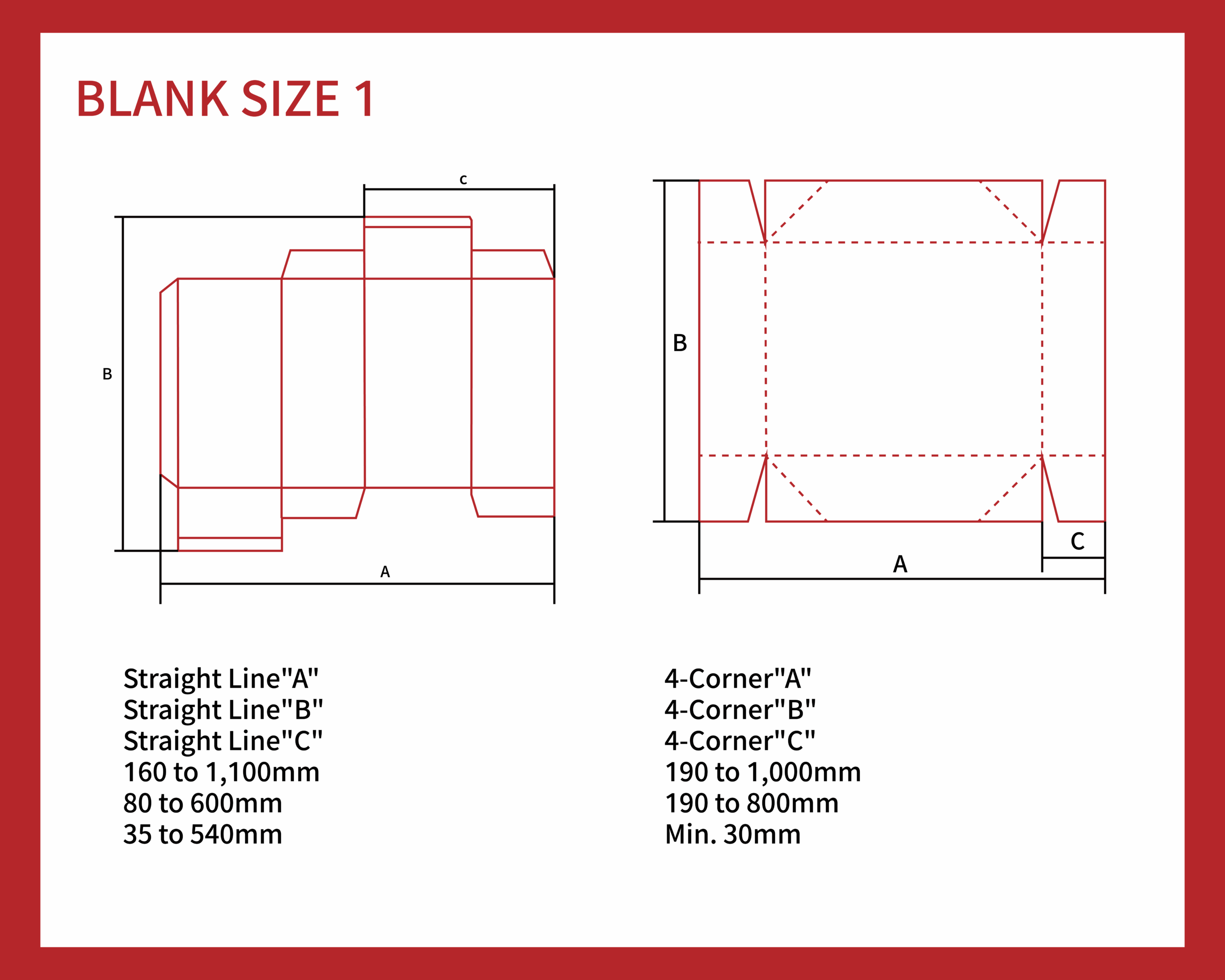

paktek_blank 1

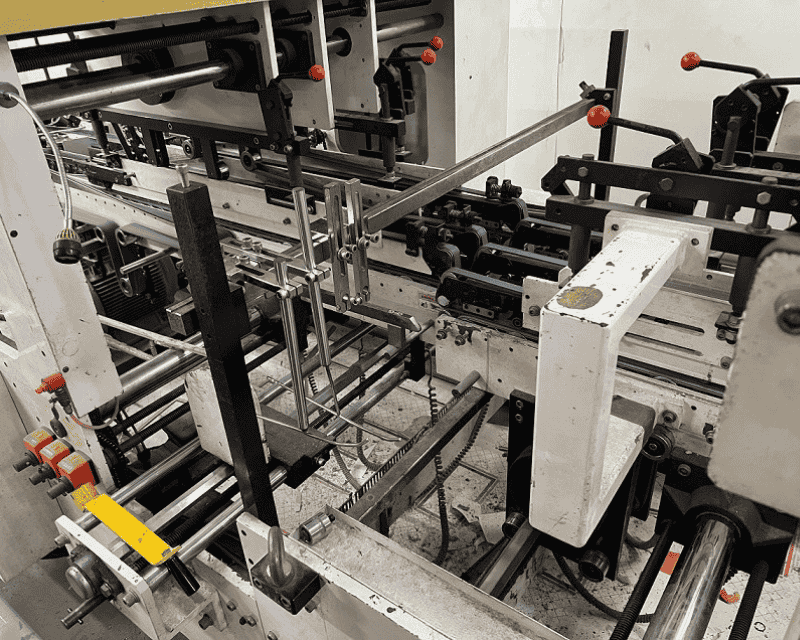

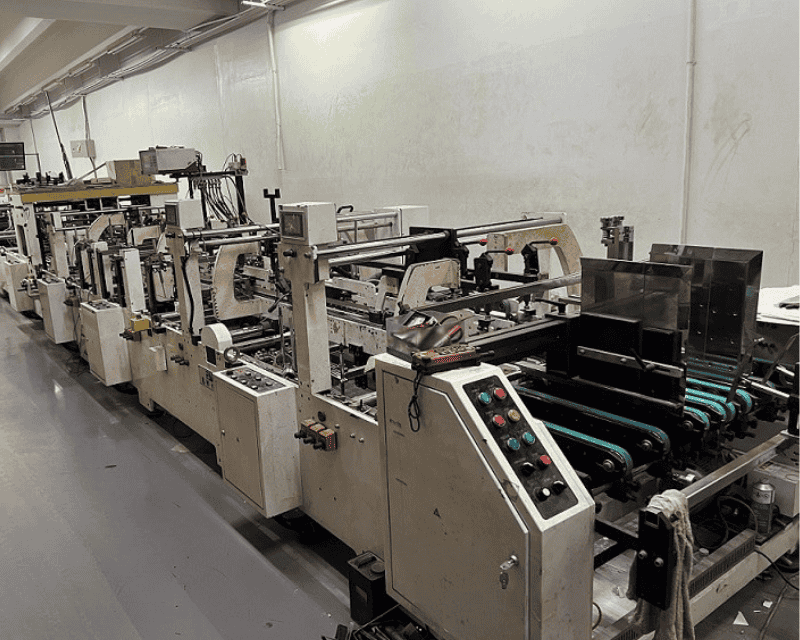

PAKTEK GM-1050 Folder Gluer Machine
