Ding Shung CS-1416 Aspire High-Speed Servo Litho Laminator

Model: CS-1416

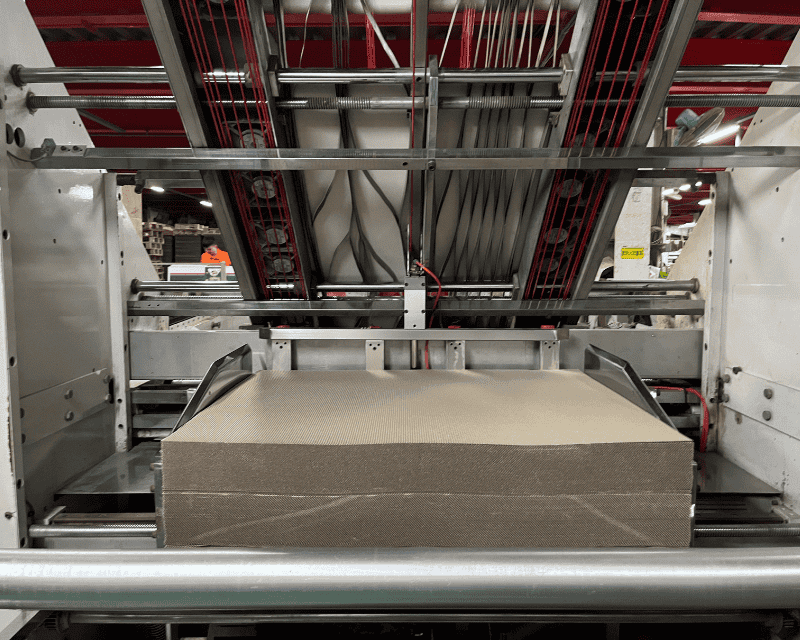

Ding Shung CS-1416 Aspire High-Speed Servo Litho Laminator features a patented front-top lead-edge suction feeder, ensuring rapid and smooth sheet delivery. The machine requires no calibration when switching sheet sizes, allowing for quick changeovers and reduced downtime. Its user-friendly design means even novice operators can run the machine with minimal training. Additionally, the absence of a suction mechanism on the sheet pile stack provides a clear, unobstructed workspace, enhancing both safety and operational efficiency.

Videos:

Features:

    • Professionally Refurbished: Fully inspected, serviced, and adjusted by expert technicians to ensure stable operation
    • High Precision Lamination: Lamination accuracy up to ±1.5 mm for consistent and flat bonding
    • High Output Capacity: Production speed up to 9,000 sheets/hour for increased productivity
    • Cost-Effective: Affordable pre-owned machine with quick return on investment—ideal for small to mid-sized factories
    • Comprehensive After-Sales Support: Technical assistance and maintenance services for worry-free operation

Machine Details:

  • The CS-1416 features a stable feeding system and high-precision automatic alignment system, suitable for a wide range of paper sizes and thicknesses. Its durable mechanical structure and automated control system reduce manual errors and boost overall efficiency. The compact body design facilitates plant layout and makes integration into existing production lines easy.

Specifications:

    • Year of Manufacture: 2010

    • Max Sheet Size: 1450 x 1450 mm

    • Min Sheet Size: 450 x 450 mm

    • Face Paper Thickness: 120–800 g/m²

    • Bottom Paper Thickness: 0.5–10 mm

    • Max Lamination Speed: 150 m/min (up to 9,000 sheets/hour)

    • Lamination Accuracy: ±1.5 mm

    • Machine Dimensions: 10050 x 2100 x 2180 mm
