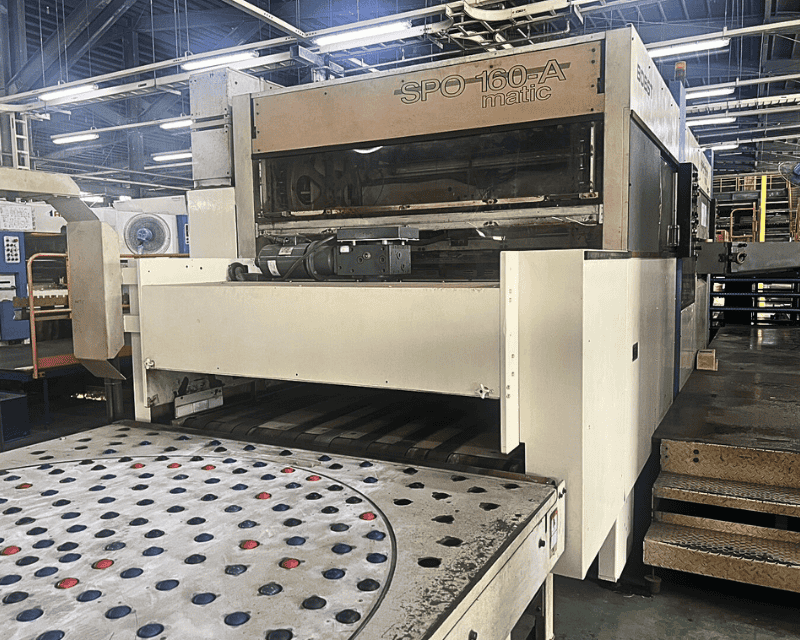

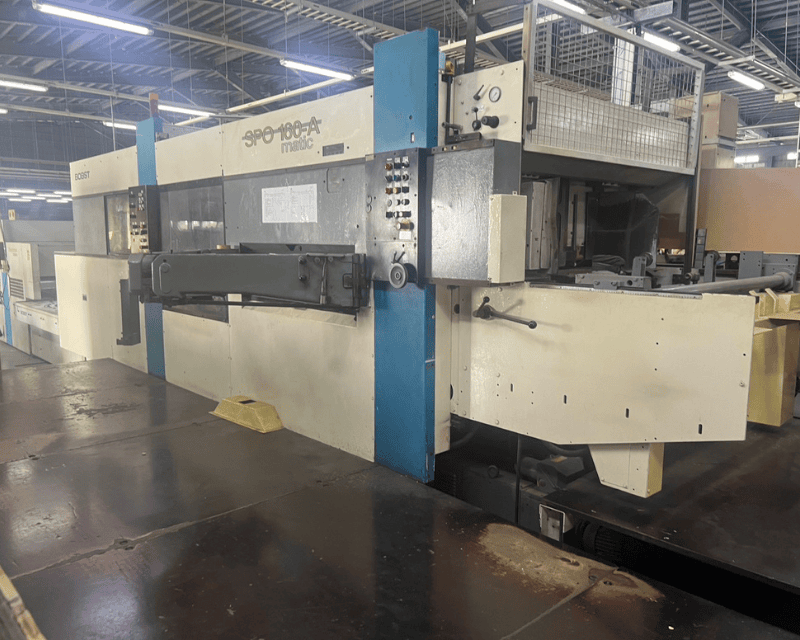

BOBST 160 A-MATIC Die-Cutting Machine

Model:160 A-MATIC

BOBST 160 A-MATIC Die-Cutting Machine is a heavy-duty automatic die-cutting machine from Switzerland, specifically designed for large-format jobs, high-volume production, and thick materials.
It offers a powerful cutting force of up to 400 tons and supports a maximum cutting size of 1,600 x 1,100 mm. It can handle corrugated board up to 9mm thick and solid board from 1mm and above.
With a high production speed of up to 6,500 sheets per hour, it’s ideal for mass production of items such as color boxes and corrugated packaging.

BOBST 160 A-MATIC Die-Cutting Machine is also equipped with a front waste cutting mode to reduce material waste and features an adjustable gripper margin (15 ± 3 mm), allowing greater flexibility for different die layouts.

Videos:

Features:

    • Up to 400 tons of pressure for heavy-duty cutting tasks
    • Maximum cutting size of 1,600 x 1,100 mm—suitable for large-format packaging
    • Supports minimum sheet sizes of 600 x 520 mm for flexible job handling
    • Front waste cutting mode optimizes material usage
    • Swiss-made quality with reliable performance and stability
    • Compatible with solid board (from 1mm) and corrugated board (up to 9mm)

    Specification:

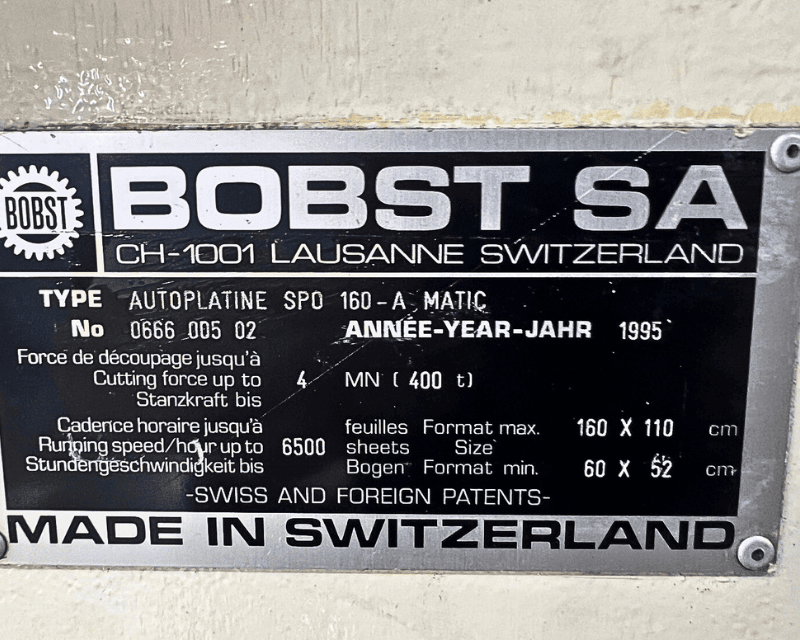

      • Year of Construction: 1995

      • Machine No.: 066 055 02

      • Country of Manufacture: Switzerland

      • Max. Cutting Size: 1,600 x 1,100 mm

      • Min. Cutting Size: 600 x 520 mm

      • Max. Cutting Size with Front Waste: 1,600 x 1,075 mm

      • Min. Cutting Size with Front Waste: 580 x 492 mm

      • Adjustable Gripper Margin: 15 ± 3 mm

      • Material Thickness: Solid board from 1mm, Corrugated board up to 9mm

      • Max. Cutting Force: 400 tons (4MN)

      • Max. Production Speed: Up to 6,500 sheets/hour

      • Voltage: 480 V

      • Frequency: 50 Hz
