BOBST SP106SE Automatic Die Cutting Machine-B

Model:SP106SE

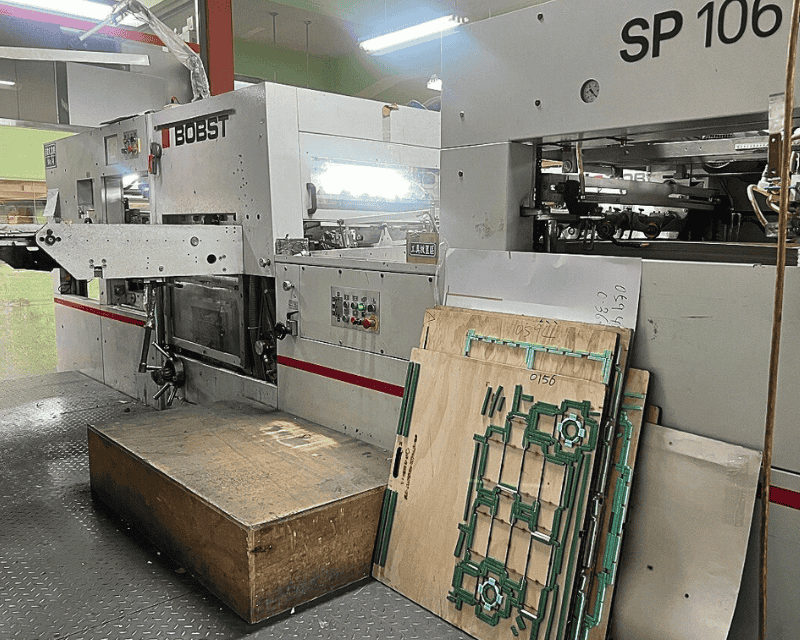

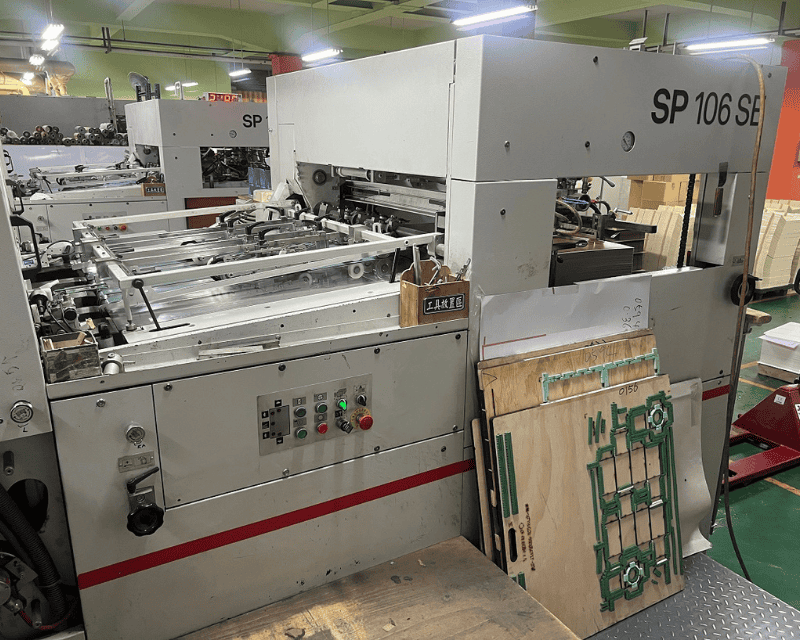

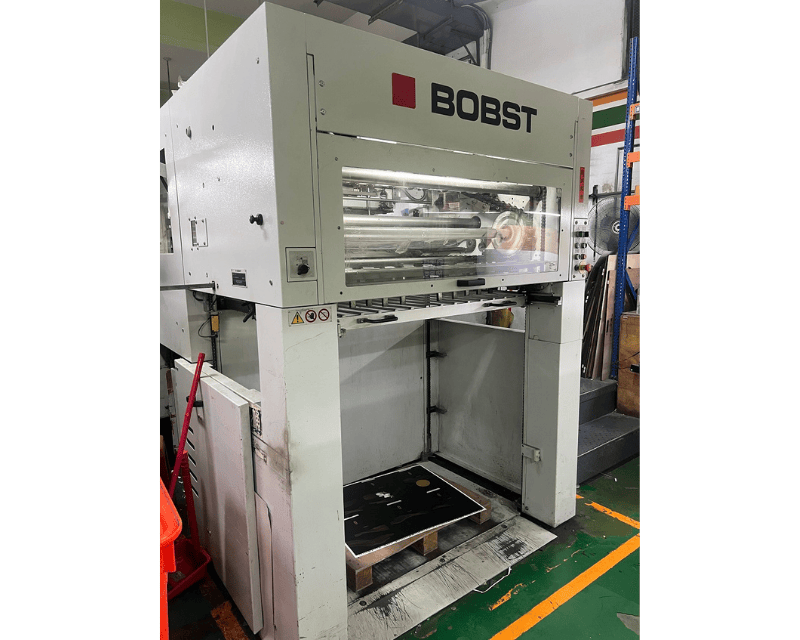

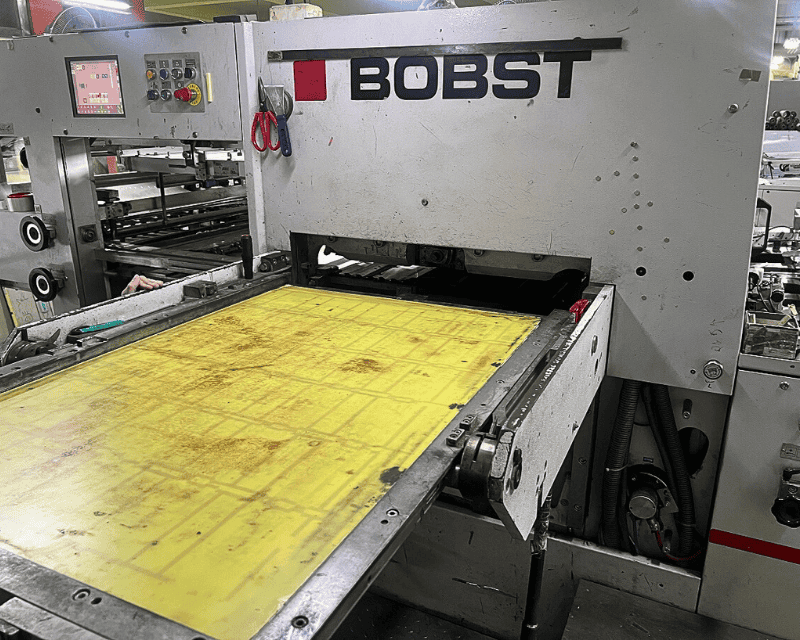

BOBST SP106SE is a high-performance automatic die-cutting machine designed for precision post-press processing of packaging and commercial print materials. Manufactured in 2019 and currently located in Taiwan, this machine supports a maximum sheet size of 1060 x 760 mm and is still running in daily production. Known for its advanced features like Centerline system, Quick Lock setup, and non-stop feeder, BOBST SP106SE delivers high efficiency and excellent cutting accuracy. With over 70 million sheets processed and 34,920 running hours, the machine remains in excellent condition—ideal for facilities seeking reliable, ready-to-run equipment.

Videos:

Features:

    • Maximum sheet size: 1060 x 760 mm for medium to large format jobs
    • Equipped with Stripping Unit to streamline waste removal
    • Centerline system and Quick Lock for fast and precise die changeovers
    • Non-Stop Feeder and Continuous Delivery to ensure smooth high-volume

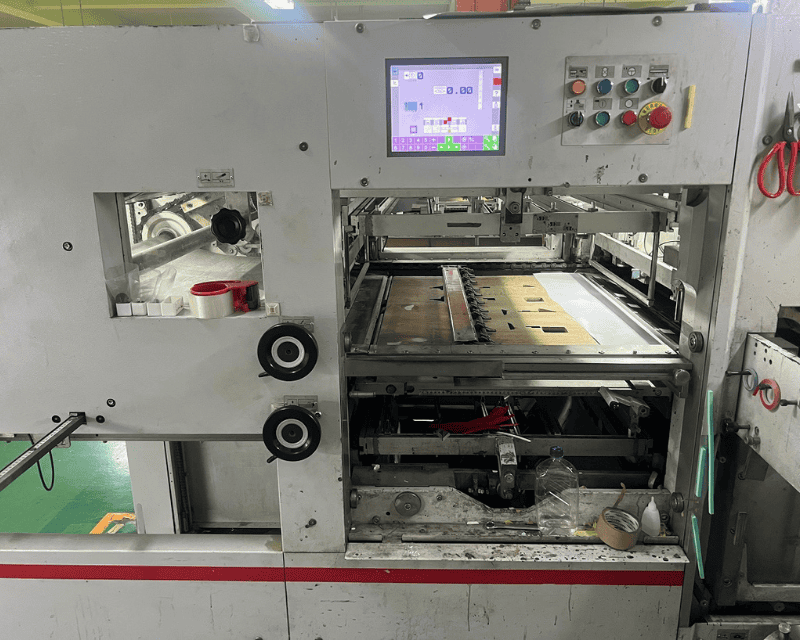

    • Touch Screen Cube Control System for intuitive operation
    • Both Side Pull Gauge enhances sheet alignment accuracy
    • Includes full tooling: 1 cutting chase, 1 pc of 4mm cutting plate, 5 pcs of 1mm plates
    • Stripping section with 1 complete frame and pre-setting unit
    • Still in daily production, excellently maintained

    Specification:

      • Model: BOBST SP106SE

      • Year of Manufacture: 2019

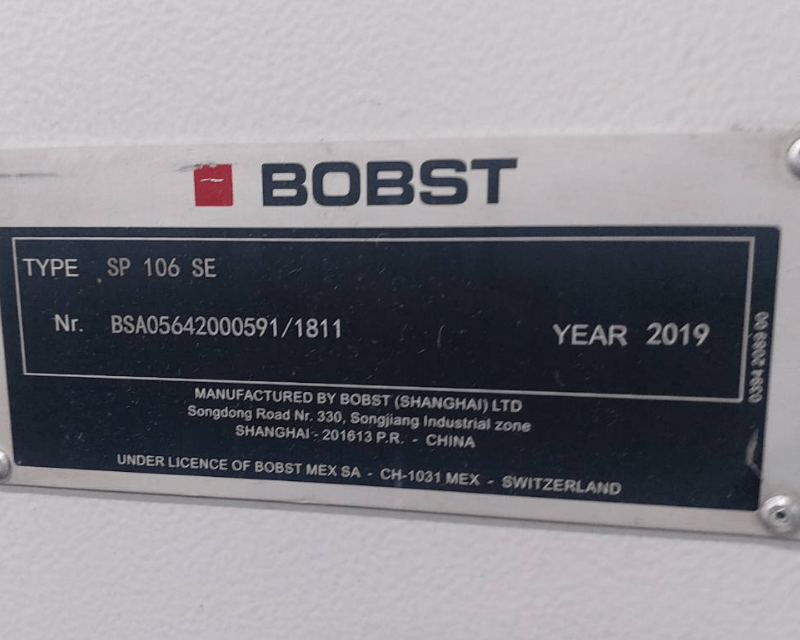

      • Machine Serial No.: 1811

      • Location: Taiwan

      • Total Running Hours: 34,920 hours

      • Total Sheets Processed: 70,407,000 sheets

      • Max. Sheet Size: 1060 x 760 mm

      • Equipped With:

        • Stripping Unit

        • Centerline System

        • Quick Lock Device

        • Non-Stop Feeder

        • Continuous Delivery

        • Touch Screen Cube Control

        • Both Side Pull Gauge

        • 1 Cutting Chase

        • Cutting Plates: 4mm ×1, 1mm ×5

        • Stripping Section with 1 Set of Frame

        • Pre-setting Unit ×1
