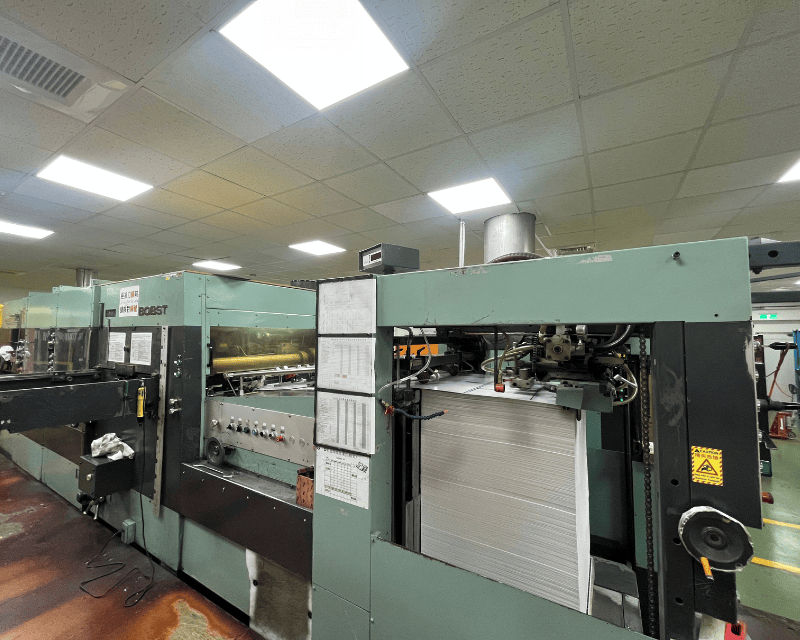

Bobst SP102-CER Die cutter with Stripping &Blanking

Model:SP 102-CER

Bobst SP102-CER Die cutter with Stripping &Blanking is a mid- to large-format finishing machine designed for folding cartons, packaging boxes, and corrugated products. It processes materials from 80 g/m² paper up to 2,000 g/m² cardboard and supports corrugated board up to 4 mm thick, meeting a wide range of packaging die-cutting requirements.

The machine handles sheet sizes from 400 × 350 mm to 1020 × 720 mm, operates at speeds of up to 8,000 sheets per hour, and delivers a 250-ton cutting force to ensure stable performance for heavy board and high-pressure die-cutting applications.
Equipped with a non-stop feeder and stacker, as well as stripping and blanking units, it improves production efficiency and reduces manual handling. Side guides, micrometer adjustment, and the Centerline system enable faster setup and changeovers while maintaining consistent production stability.

Videos:

Features:

    • Maximum Cutting Force: 250 Tons
      Provides powerful and stable cutting performance, suitable for thick cardboard and corrugated board applications.
    • Maximum Speed: 8,000 sheets/hour
      Balances productivity and precision, ideal for medium to high-volume packaging production.
    • Wide Material Compatibility
      Supports materials from lightweight paper to heavy cardboard and corrugated board up to 4 mm thick.

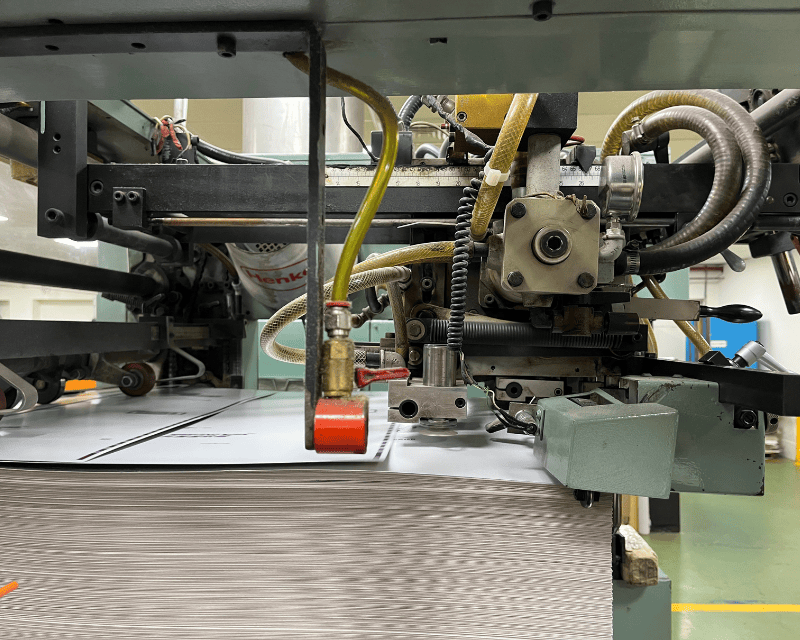

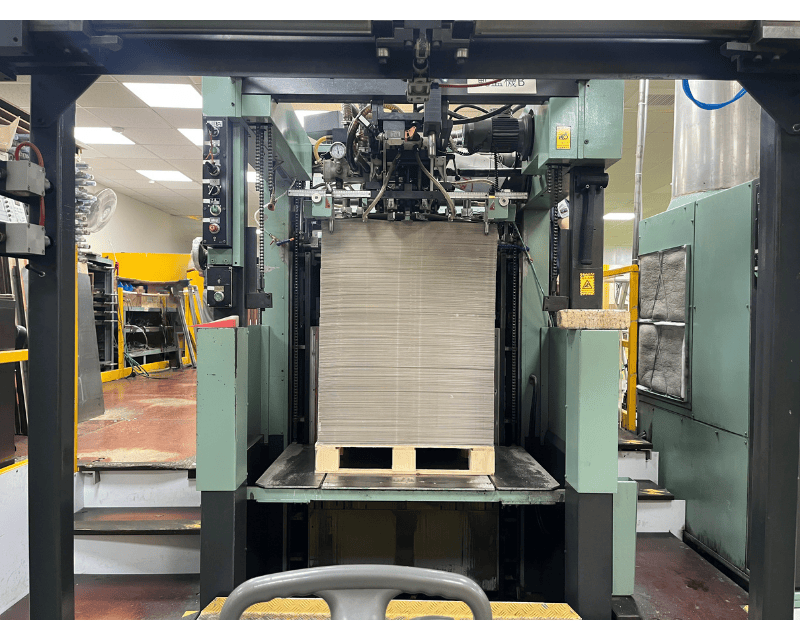

    • Non-stop Feeder & Non-stop Stacker
      Ensures continuous production without stopping for pile changes.
    • Centerline System
      Reduces setup and changeover time while ensuring repeatable and consistent production quality.
    • Micrometer Adjustment
      Allows fine and precise cutting pressure adjustments for optimal die-cutting accuracy.
    • Side Guide & Quick-release Lock
      Enhances sheet alignment and enables faster and more convenient job setup.

      Specification:

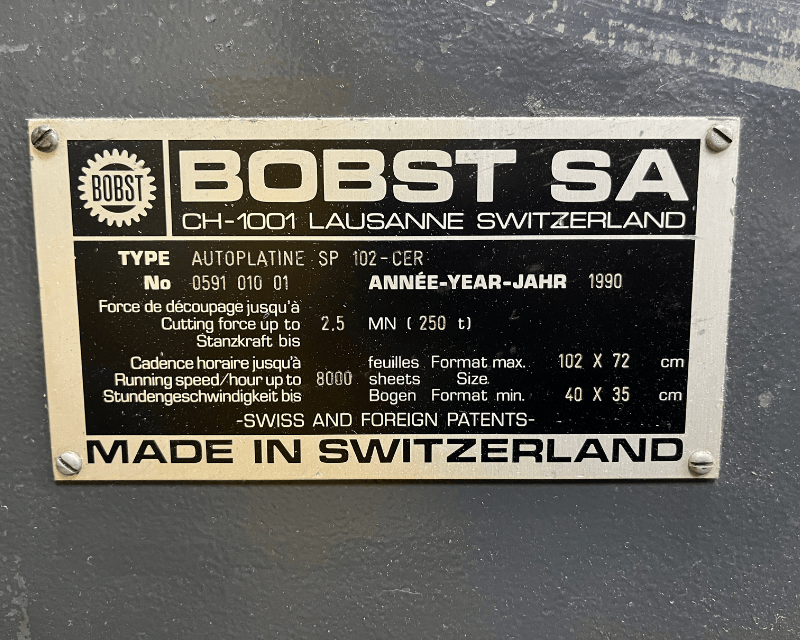

        • Model: Bobst SP 102 CER
        • Year of Manufacture: 1990
        • Maximum Sheet Size: 1020 × 720 mm
        • Minimum Sheet Size: 400 × 350 mm
        • Maximum Speed: 8,000 sheets/hour
        • Maximum Cutting Force: 250 tons
        • Material Range
          • Paper: minimum 80 g/m²
          • Cardboard: maximum 2,000 g/m²
          • Corrugated Board: up to 4 mm
        • Standard Equipment
          • Non-stop Feeder
          • Non-stop Stacker
          • Side Guide
          • Quick-release Lock
          • Micrometer Adjustment
          • Blanking Unit
          • Stripping UnitCenterline System
