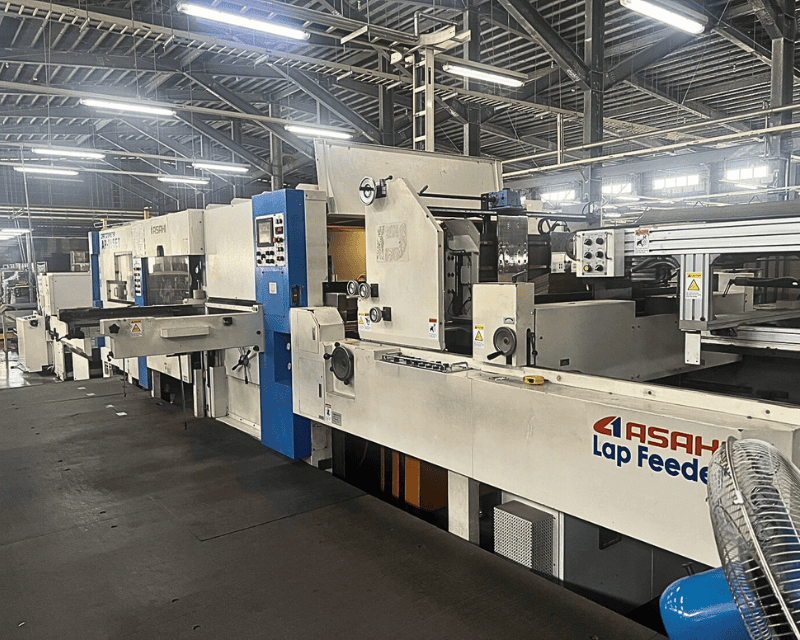

ASAHI Cartonmaster AP-165 E II Automatic Flatbed Die-Cutting Machine

Model:AP-165 E II

ASAHI Cartonmaster AP-165 E II is a large-format automatic die-cutting machine, offering a maximum die-cutting size of 1180 × 1630 mm and capable of handling sheets as small as 500 × 600 mm. It supports corrugated board thicknesses ranging from 1 to 9 mm. With a die-cutting pressure of 350 tons and a maximum speed of 5,000 sheets per hour (iph), it features stable sheet feeding and a standard bite of 15 ± 5 mm, making it ideal for processing large cartons and printed boxes. Powered by a 22KW main motor with a total power consumption of 36KW, and weighing 38 tons, this machine delivers both strength and precision—perfect for high-volume, high-accuracy production needs.

Videos:

Features:

    • Large-Format Die-Cutting: Maximum cutting size of 1180 × 1630 mm, ideal for oversized sheet processing
    • Strong Die-Cutting Force: Up to 350 tons of pressure, suitable for corrugated board thickness from 1 to 9 mm
    • High Production Efficiency: Speeds up to 5,000 impressions per hour (iph), enhancing output
    • Stable Feeding System: Standard bite of 15 ± 5 mm ensures accurate sheet positioning
    • Energy-Efficient Drive: Main motor power of 22KW with total consumption at 36KW
    • Heavy-Duty Construction: Weighing 38 tons, the machine is built for long-term stable performance

    Specification:

      • Year of Manufacture:2016
      • Maximum Paper Size:1200 × 1650 mm
      • Minimum Paper Size 500 × 600 mm
      • Maximum Die-Cutting Size 1180 × 1630 mm
      • Standard Bite 15 ± 5 mm
      • Maximum Die-Cutting Pressure 350 tons
      • Applicable Corrugated Thickness:1 – 9 mm
      • Maximum Die-Cutting Speed:5,000 impressions per hour (iph)
      • Total Power Consumption 36 KW (Key Motor: 22 KW)
      • Machine Weight 38 tons

      2016 ASAHI Cartonmaster AP 165 E II-1
