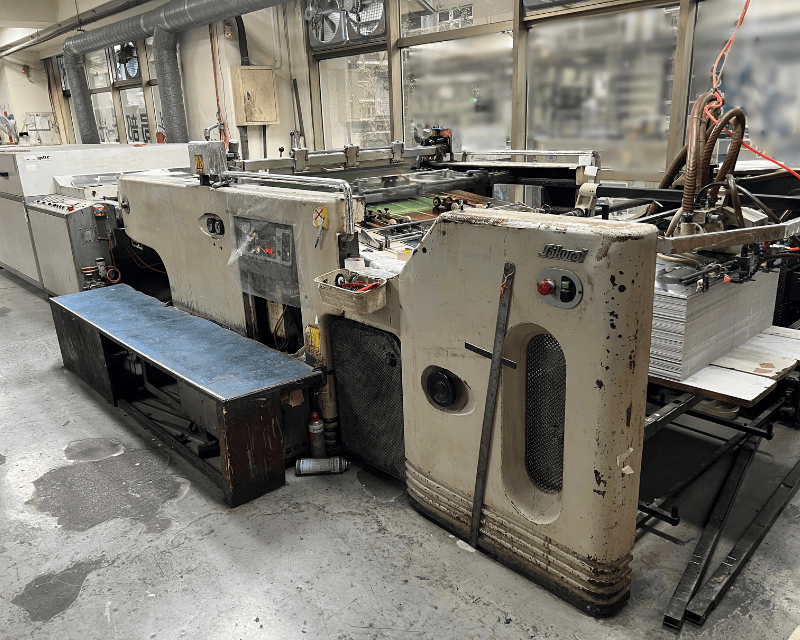

The 2003 Sakurai MS 102A is a high-performance automatic cylinder screen press designed for precision. With a maximum sheet size of 1,050 × 750 mm and a minimum of 560 × 350 mm, it flexibly handles a wide range of large-format printing requirements. Paired with a Taiwan-made UV Light High-Efficiency UV Dryer (155 AMPS), it ensures instant curing at high speeds, maintaining smooth production flow and superior finish quality.

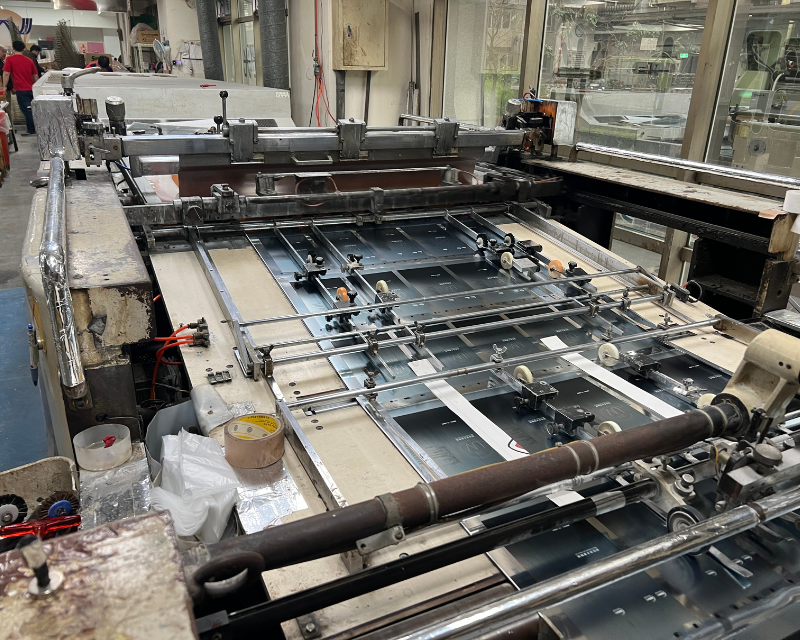

Classic Cylinder System Provides exceptional sheet stability and registration precision, making it ideal for high-accuracy multi-color overlays and precision industrial printing.
Large Format Printing Capability With a maximum print area of 1,020 × 700 mm, it is perfectly suited for large-area spot UV coating, specialty coatings, or high-end poster printing.
High-Efficiency UV Curing System Equipped with a renowned Taiwanese UV Light Dryer (155 AMPS), the powerful output ensures thorough ink curing even at high production speeds, preventing set-off or sticking.

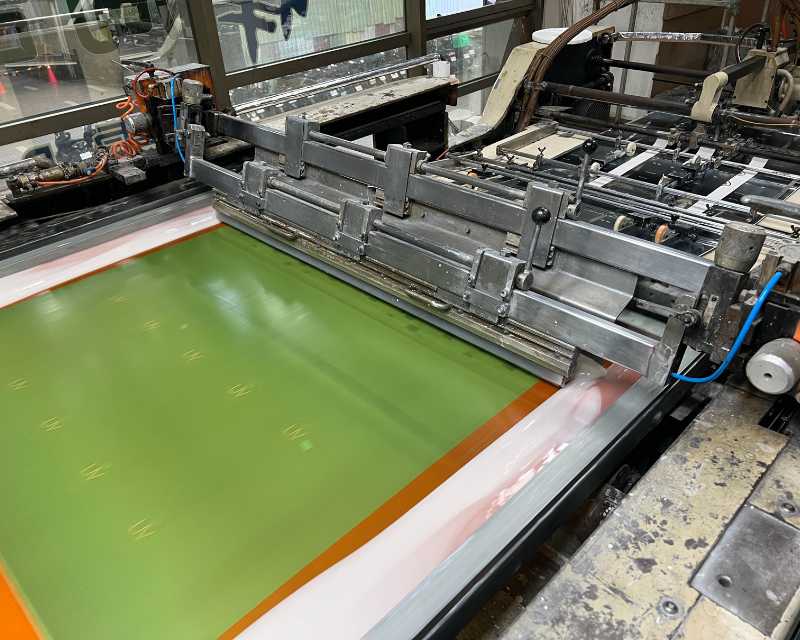

Optimized Screen Frame Compatibility Supports screen frame sizes up to 1,280 × 1,140 mm, providing a generous workspace for easier adjustment and precise alignment.
Proven Mechanical Stability As a 2003 model from Sakurai’s mature technology era, the machine features a robust build that ensures long-term stability for high-volume mass production.

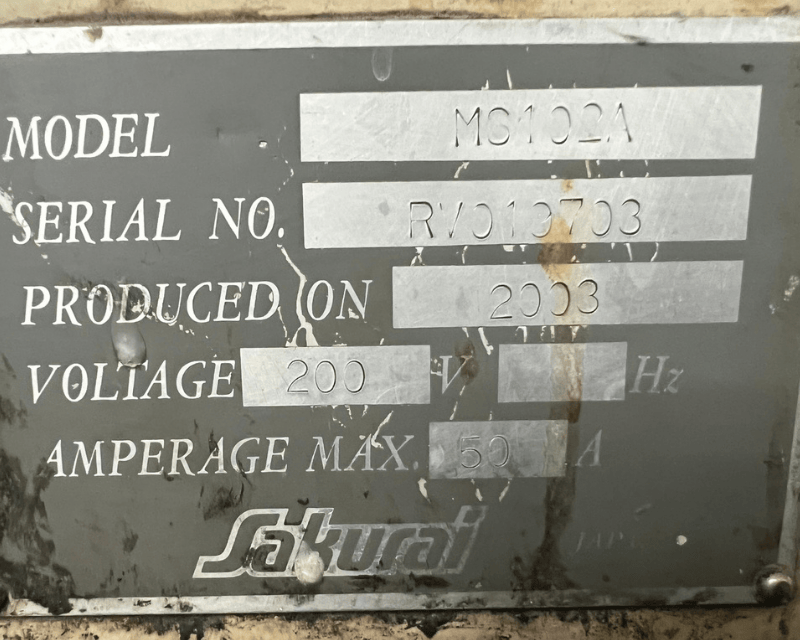

Model: Sakurai MS 102A
Year of Manufacture: 2003
Max. Sheet Size: 1,050 × 750 mm
Min. Sheet Size: 560 × 350 mm
Max. Print Size (W × L): 1,020 × 700 mm
Screen Frame Size: 1,280 × 1,140 mm
Machine Dimensions (L × W × H): 3,907 × 3,080 × 1,610 mm (Main unit without UV dryer)
Drying System: UV Light (Taiwan) UV Dryer (155 AMPS)
